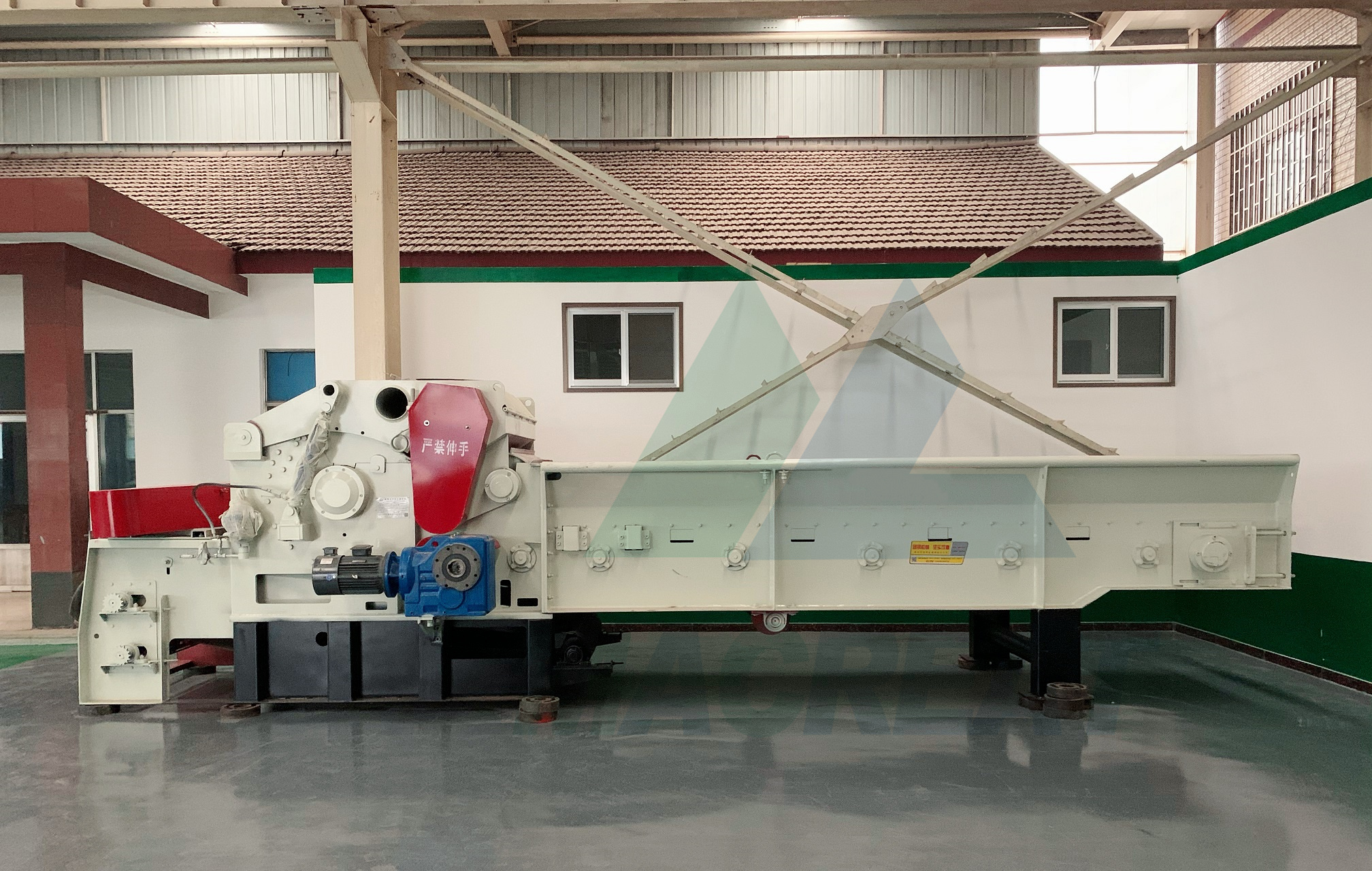

The comprehensive wood crusher is a professional in various raw materials, breaking the traditional process structure mode, adopting soft starter, the feeding system with frequency control. All parts of machine are made by advanced equipment, to ensure that the machine be safety and reliable, efficient to produce high-yield, good quality wood chips. The wood chips size: 2-10cm. It is specially widely used in crushing pallet or wood with nails.
Parameters:
| 1.Feed system | Trough belt conveyor |
| Type | Belt (Optional chain plate) |
| Motor power | 7.5+5.5 kw |
| Belt width | 1300 mm |
| Belt length | 6000 mm |
| Speed of belt | 0-18 m/min |
| 2.Main machine | |
| Knife roll diameter | 800 mm |
| Knife roll speed | 540 rpm |
| Capacity | 10-18 ton/hour |
| Fly knife quantity | 2x3 Pcs |
| Fly knife material | 65Mn |
| Max process diameter | ≤340mm (Fluffy＜500mm) |
| Main motor power | 132 kw |
| Wood chips size | 90%≤100 mm |
| Screener size | 80x80 mm |
| 3.Discharge system | |
| Type | 4-layer nylon |
| Motor power | 7.5+5.5 kw |
| Belt width | 1200 mm |
| Belt length | 11800 mm |
| Discharge height | ≤4500 mm |
| 4.Electrical control | |
| Control cabinet model | QZB-180 |
| Control cabinet remote control | Feeding start and stop, total stop, remote control |
| 5.Hydraulic system | |
| Hydraulic oil pump model | 4WE10D31B |
| Hydraulic oil tank volume | 120L |
| Hydraulic oil pump motor | 3 kw |
| 6.Total | |
| Power | 161 kw |

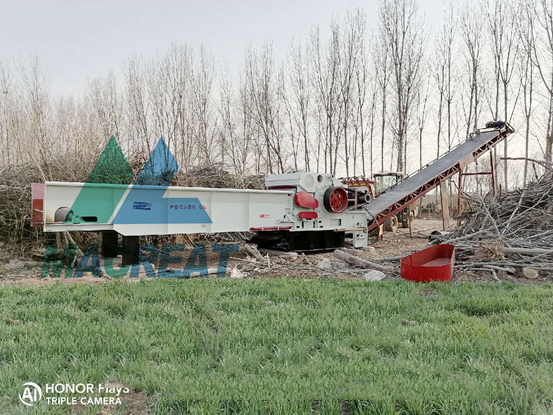

Working Videos:
